As part of the energy transition, an industrial site in Wesseling was gradually transformed from traditional oil-related activities to more sustainable applications.
As part of this redevelopment, an existing filtration plant was taken out of service. Instead of opting for complete demolition, a sustainable solution was chosen in which the building was preserved and the technical installations were carefully dismantled for refurbishment and reuse.
DDM was contracted to carry out the specialist dismantling of four chamber filter presses, each weighing approximately 55 tonnes and measuring 13 x 2.30 x 2.40 metres. Due to the substantial weight, limited space, and structural constraints, this project required detailed engineering and a carefully developed execution strategy.
Engineering and Execution Strategy
Following a thorough site inspection, an efficient and safe dismantling method was selected in which the filter presses were removed through the front of the building. This approach provided logistical advantages and minimized structural modifications to the building.
Prior to execution, a detailed work plan was prepared. The activities included creating a temporary opening in the façade, installing heavy-duty support structures beneath the presses to ensure load-bearing capacity, and constructing an external platform for temporary positioning.

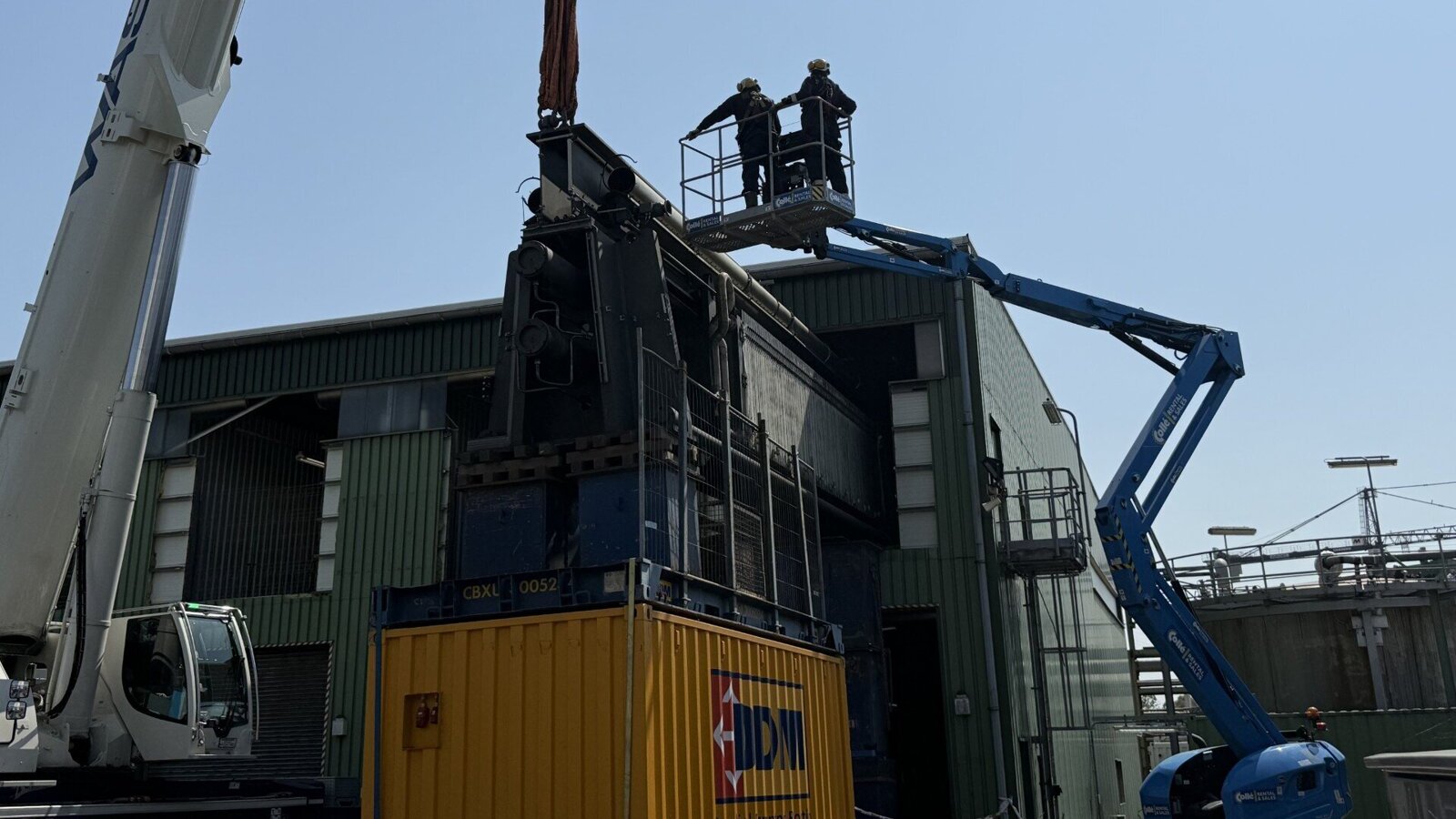

The filter presses were lifted hydraulically one by one and placed on heavy-duty transport skates. Using a manual winch, the units were carefully pulled outside. Once a press was partially positioned outside the building, it was connected to a crane and further extracted in a controlled manner. By combining mechanical pulling force with crane capacity, each press was safely relocated and positioned onto the transport platform.
Challenges and Control Measures
The execution took place under challenging conditions, including high outdoor temperatures exceeding 38°C and limited personnel availability. Through additional safety measures, adjusted working and rest schedules, and supplementary support, progress was maintained without compromising safety or quality.
Result
The technical dismantling was successfully completed within the planned execution period. The filter presses were carefully prepared for refurbishment and reuse, making a significant contribution to the circular deployment of industrial installations. This project highlights DDM’s expertise in complex industrial dismantling, heavy transport within existing structures, and the sustainable decommissioning of process installations.
